Description

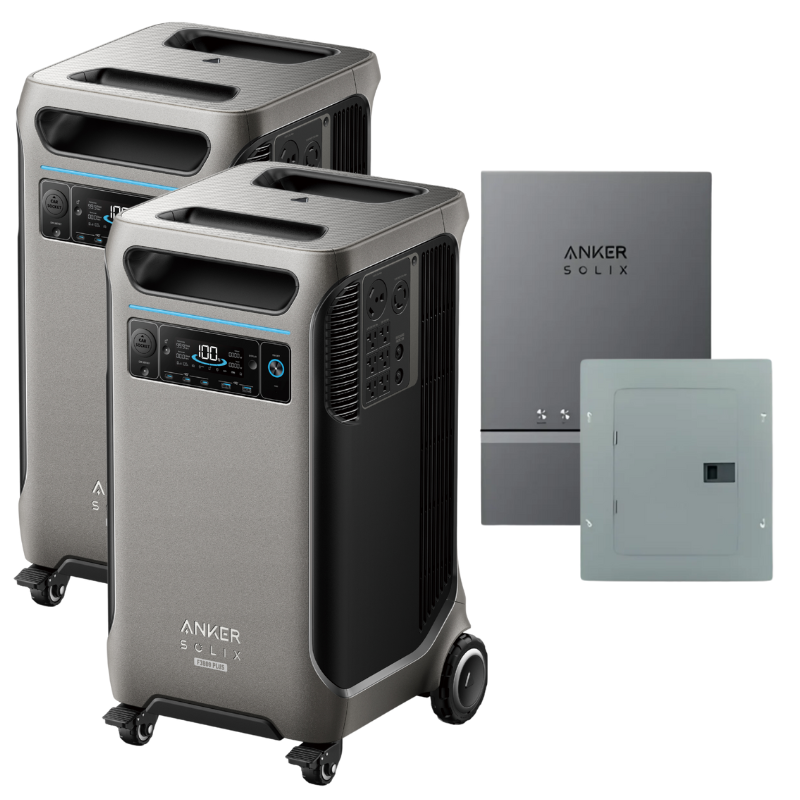

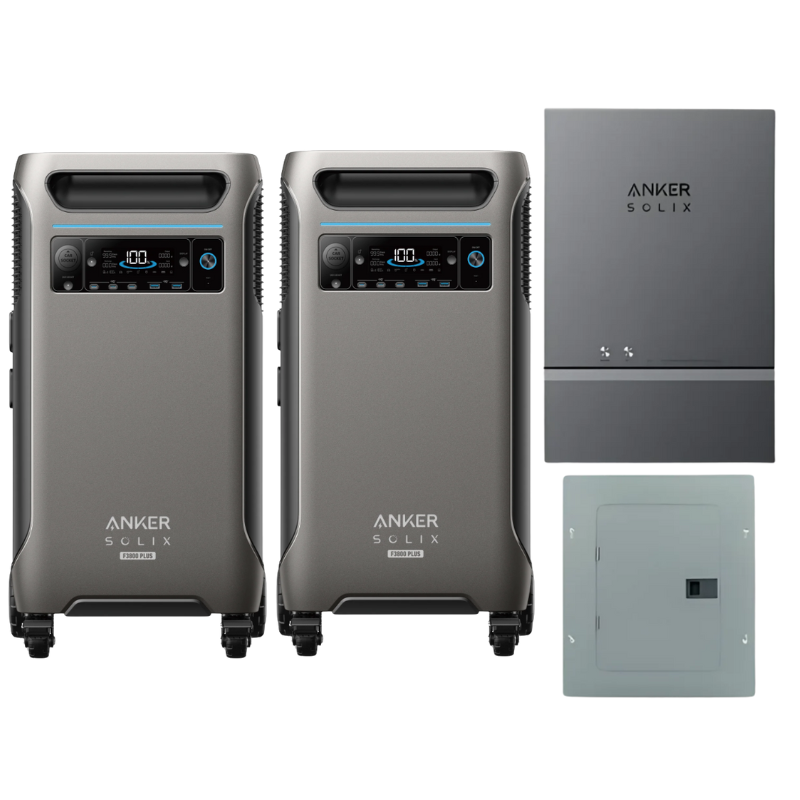

Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel
The Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel is a high-capacity, whole-home backup power solution designed for ultimate energy resilience. With two SOLIX F3800 units, this system delivers massive expandable energy storage, reliable home backup, and intelligent energy management. Whether you're preparing for power outages, living off-grid, or optimizing solar energy storage, this package ensures seamless power distribution with 240V split-phase output and smart home integration.
Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel Features
Dual F3800 Power Stations for Maximum Energy Storage
With two F3800 units, enjoy a total of 7.7kWh battery capacity, expandable up to 26.9kWh with additional BP3800 Expansion Batteries.
Whole-Home Backup with Sub Panel Integration
Power up to 12 circuits with seamless home energy management using the Home Power Panel and Sub Panel.
Massive 240V Split-Phase Power
Capable of handling high-powered appliances like HVAC systems, well pumps, and heavy-duty tools.
Flexible Charging Options
Supports 3000W AC charging, 2400W solar input, and generator charging for continuous energy availability.
Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel Applications
- Whole-home power backup for extended outages.
- Off-grid solar-powered home energy storage.
- Running high-power appliances (240V compatibility).
- Sustainable energy independence with solar integration.
- RVs, mobile homes, and remote cabins.
What's Included
Everything you need is included with your product.
- (2) Anker SOLIX F3800 Plus Portable Power Station
- (1) Anker SOLIX Home Power Panel
- (1) Anker SOLIX Sub Panel
- (1) AC Charging Cable
- (1) MC4 3-Port Solar Charging Connector
- (1) User Manual
Anker SOLIX F3800 Plus Portable Power Station Specifications
BATTERY
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
INPUT
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
OUTPUT
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
UPS
| Specifications | Details |
| UPS | 20ms |
ENVIROMENTAL OPERATION
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
DIMENSION
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
Frequently-Asked Questions
How long can the dual F3800 setup power my home?
With 7680Wh capacity, the system can run a full home setup for an extended period, depending on energy consumption.
Can I expand this system later?
Yes! The dual F3800 setup supports up to 6 BP3800 expansion batteries, allowing for a total storage capacity of 26.9kWh.
Is professional installation required?
Yes, for the Home Power Panel and Sub Panel, professional installation is recommended for safe and optimal performance.
Can I run 240V appliances with this setup?
Yes! The system provides 240V split-phase power, making it ideal for AC units, dryers, well pumps, and heavy-duty appliances.
